Product Summary:
- Diagonal Size: 86 inch
- 4K display, 10 bit color, high color accuracy
- 8GB RAM, 128GB ROM
- Android 14 system, Google EDLA certificated
- 40 touch points, ±1.5 mm touch accuracy
- Classroom eye care, TÜV Low Blue Light and Flicker Free certification
SKU: STU36995
MAXHUB E series E8630 86'' Interactive Flat Panel
You May Also Like
-
Delivery charges may apply
$79.00
-
Delivery charges may apply
$147.95
-
Description:
MAXHUB E series E8630 86''

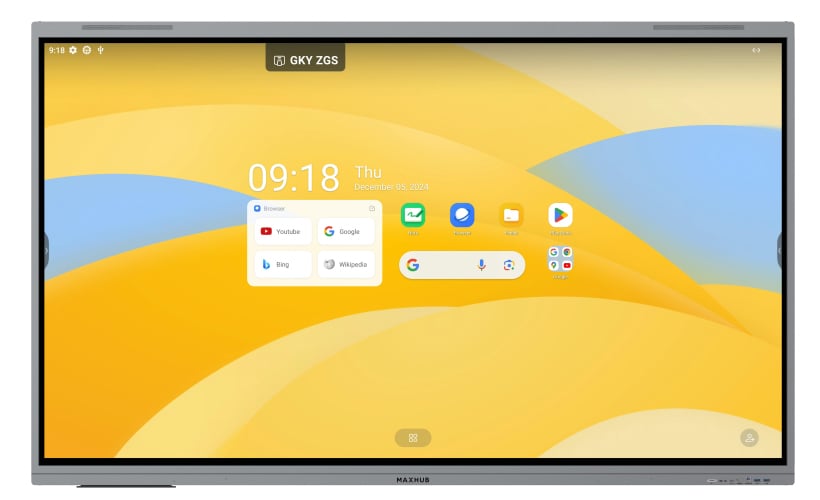

The MAXHUB E8630 is an 86-inch 4K UHD interactive display designed specifically for education and collaborative learning environments. It combines a high-accuracy touchscreen, Android 14 with Google EDLA certification, powerful built-in computing, and a premium audio system to create an all-in-one classroom solution.
Features
- Prominent Display – 4K display, 10 bit color, high color accuracy
- SkyWave Sound System – 2.2 channel speaker, 2×8W + 2×18W output
- Peak Performance – Octa-core CPU, independent NPU, 8GB RAM, 128GB ROM
- Precious Touch – MAXHUB Think&Ink Technology, 40 touch points, ±1.5 mm touch accuracy
- Classroom Care – Hardware-grade eye care, TÜV Low Blue Light and Flicker Free certification
- Unparalleled Compatibility – Android 14 system, Google EDLA certificated
- Convenient Connectivity – Full-function USB-C integrating 65W PD, video, audio, touch, and internet access features
- Comprehensive Software Suite – MAXHUB EDU OS V4 with extensive education?tailored applications
Specifications
Display
- Model: E8630
- Diagonal Size: 86 inch
- Display Area: 1895.04 (H) × 1065.96 (V) mm
- Screen Level: A-Level
- Brightness: 400 nits (typ.), 450 nits (max.)
- Contrast Ratio: 3,000:1 (typ.), 50,000:1 (dynamic)
- Color Depth: 1.07B (10bit)
- Color Gamut (typ.): 98% sRGB
- Color Accuracy: ΔE ≤ 1
- Surface Technology: Anti-glare, 25% haze
- Aspect Ratio: 16:9
- Resolution: 3840 × 2160
- Panel Type: IPS
- Viewing Angle: 178° (H/V)
- Response Time: 8 ms
- Backlight Unit: DLED
- Backlight Life (typ.): ≥ 60,000 Hours
- Refresh Rate: 60Hz
- Glass: Zero parallax, 3 mm thickness, 9H tempered
- Sensors: Ambient light sensor, Ambient color temperature sensor
- Eyes Care: TÜV Flicker Free, TÜV Low Blue Light
Built-in System
- Operating System: Android 14.0
- Certification: Google EDLA
- RAM: 8GB
- ROM: 128GB
- SoC Process: 8 nm
- CPU: A72×4 + A53×4 octa-core, 2.2GHz
- GPU: Mali G52 MC3
- NPU: 6 TOPS
Touch System
- Technology: Infrared recognition
- Touch Points: 40
- Object Recognition Range: 3 mm
- Accuracy: ± 1.5 mm
- Response Time: ≤ 5 ms
- Writing Height: ≤ 2 mm
- System: MAXHUB Think&Ink (Touch Return)
- OS Compatibility: Windows7/8/10/11, Android, Linux, Mac OS X, Chrome
Connectivity
- OPS Slot — For system upgrades
- HDMI IN × 3 — Up to 4K@60Hz, HDCP 1.4/2.2/2.3, CEC
- DP IN × 1 — 4K@60Hz, HDCP 1.4/2.2/2.3
- USB 2.0 × 1
- USB 3.0 × 4
- Touch × 2
- AUDIO IN × 1 — 3.5 mm Jack
- VGA IN × 1 — Up to 1080P@60Hz
- RS232 × 1 — Baud rate 9600
- RJ45 IN × 1 — 10M/100M/1000Mbps
- TF Card Port × 1 — Expandable up to 1TB
- USB Type-C × 2 — Video/audio, touch, charging, LAN sharing (Front: 65W PD, Rear: 15W PD)
- HDMI OUT × 1 — Up to 4K@60Hz
- AUDIO OUT × 1 — 3.5 mm Jack
- SPDIF × 1 — PCM output format
- RJ45 OUT × 1 — 10M/100M/1000Mbps
- Front USB: 2 (USB 2.0 × 1, USB 3.0 × 1)
- Rear USB: 2 (USB 3.0 × 2)
- Wireless: Bluetooth, Wi-Fi 6 (802.11 ac/b/g/n/a/ax, 2.4GHz/5GHz)
- Module Slots: 2 (Wi-Fi Module SI07B supported)
Audio
- Audio System: SkyWave Sound System
- Sound Channel: 2.2
- Speaker Power: 2×8W + 2×18W (output), 2×12W + 2×25W (maximum)
- Sound Pressure Level: 88 dB (1W, 1m)
Physical Specification
- Dimension (L×H×D): 1959×1179×100 mm
- Shipping Dimension (L×H×D): 2110×1305×225 mm
- Thickness (Machine + Wall Mount): 129 mm (WIB9060H)
- Wall-hanging Screw: M4×14 mm VESA
- Net Weight: 52.45 kg
- Gross Weight: 69.00 kg
Power
- Power Supply: AC 100-240V~ 50/60 Hz 4.5A
- Standby Consumption: ≤ 0.5W
- Typical Consumption: 190W
- Power Saving: Energy Star Certification
Optional Modules
- USB Camera
- Video Bar
- OPS Module (OPS62A/OPS72A)
- Sensor Box UC W31 / UC S07
- WL10C
- Mobile Stand (ST33M, ST23G, EST09)
Environment
- Operating Temperature: 0°–40°
- Operating Humidity: 10%–90% RH
- Storage Temperature: -20°–60°
- Storage Humidity: 10%–90% RH
- Altitude: Below 5000 meters
- Dust Resistance: IP5X-rated
Software System
- OS: MAXHUB EDU OS V4
- Screen Sharing
- Whiteboard Tool
- Device Management
- MAXHUB Connect, MAXHUB Class Pro, MAXHUB Pivot
- Google Apps: Google Play, Google Drive, Google Meet, Google Maps, YouTube
- Other Apps: Browser, Cloud Drive, Note, Palette
Accessories
- Power Cord (3 m × 1)
- HDMI Cable (3 m × 1)
- Remote Control × 1
- Stylus × 2
- Display Bracket × 2
- Wall Mount Bracket WIB9060H × 1
- Wi-Fi Module SI07B × 1
