Bambu Lab AMS Hub for For X1 Series and P1 Series Printers

This product fits   in your saved printer list.

Our Price:

In Stock
$
75
.99

What is Rewards Points?

Earn reward points every time you shop at InkStation. For every dollar you spend on products, you'll earn 1 point. Once you collect 200 points, you can redeem them for a $1 voucher—or save up 1,000 points to get a $5 voucher.

The more you purchase, the more rewards points you earn, so start earning today and enjoy discounts on your next order.

Learn More.

Earn
75
Rewards Points
Always competitive price

Qty:

This item is excluded from the free delivery offer. Additional shipping fees apply to large and bulky items due to their size and weight.

For more information, see our Shipping Policy Page.

 Delivery charges may apply
Shipping Calculator Postcode

Product Summary:

  • Used to expand the number of AMS
  • For Bambu X1/P1 series printers

SKU: STU30653

You May Also Like

Description:

Overview

The AMS Hub is used to expand the number of AMS connected to Bambu X1/P1 series printers from 1 AMS unit (4 channels) to a maximum of 4 AMS units (16 channels) to improve the refueling speed across your multiple AMS units and support the redundancy of a buffered signal.

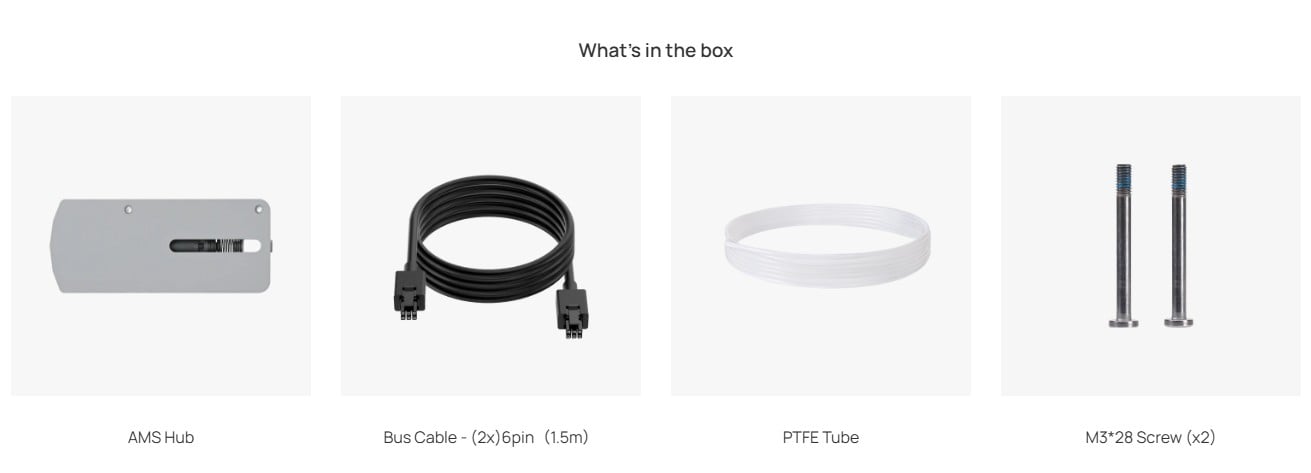

*The Bambu Lab AMS Hub includes the necessary accessories to connect 2x AMS units to the printer. If you wish to add more AMS units, you need to order additional Bus cable and PTFE Tube. To use 4x AMS units, you need to order additional 2x Bus cable (6pin) and 2x 2m PTFE Tube.

图片加载失败文案



*The picture is for reference only, try to place the AMS on the left side of the AMS Hub when actually printing, otherwise the filament in the PTFE tube is easy to get stuck.

图片加载失败文案


Expand Your AMS Options

The built-in buffer of the printer can only be connected to 1 AMS. When replaced with AMS Hub, the printer will be able to connect up to 4 AMS.

图片加载失败文案

Installation

  • Install the AMS Hub on the back of the printer, replacing the Filament buffer if you have one, and use the matching Bambu 4 Pin cable to connect to the printer, use the Bambu 6 Pin cable to connect to the first AMS, then continue to use the 6-pin cable to connect the remaining AMS in series.
  • Use the matching PTFE Tube to connect the AMS Hub and the air tube connector on the back of the printer, the tube should pass between the 4-pin plug and the spool holder to reduce the resistance.
  • According to the placement of the AMS and the printer, you can choose the appropriate length of the PTFE tube to connect the AMS and the AMS Hub. The tube should be as short as possible and avoid winding to reduce the feeding resistance.

Looking for a different Bambu Lab product? Check out our full catalog of Bambu Lab products here.
