Plustek OpticPro A320E Graphic A3 Scanner

Scans A3 document in 7.8 sec
Product is no longer available

You May Also Like

Description:

Overview:

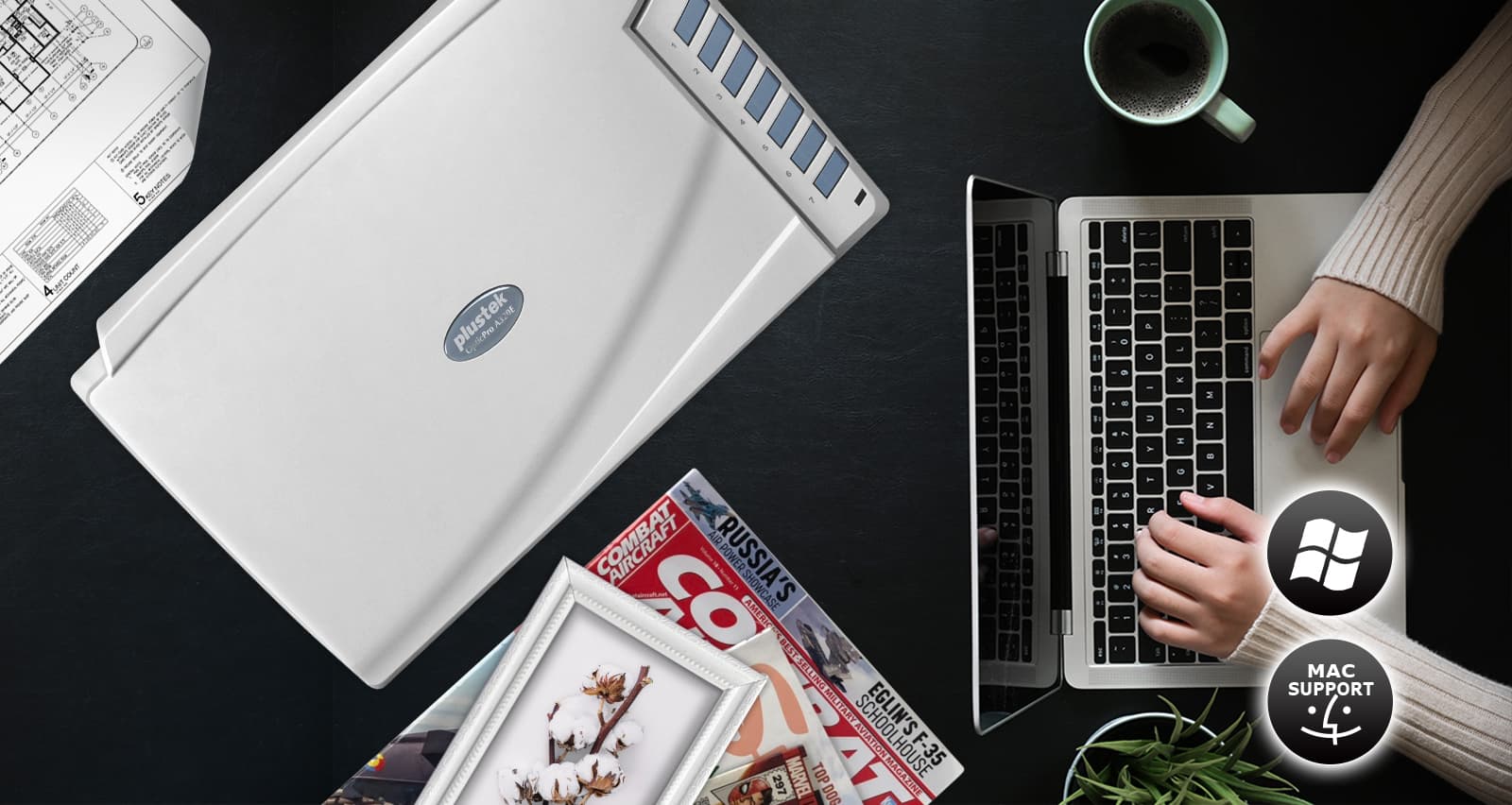

The Plustek OpticPro A320E is a high resolution, 800 dpi scanner that can scan an A3 sized page in 7.8 seconds. Seven programmable one-touch buttons simplify scanning tasks. It is ideal for graphic designers, publishing companies, libraries, schools, small office/home office (SOHO) users and for others who require large format scanning in a cost-effective way.

Features:

  • Large format scanning area (A3 size ,304mm x 431mm ,12" x 17" )
  • CCD Sensor allows scanning images with depths of field
  • One-touch button design to personalized the program
  • Accurate color and high dynamic range
  • Compatible with most imaging applications
  • User-friendly software bundle

Enjoy a seamless scanning operation with Plustek OpticPro A320E providing greater versatility and precision when scanning journals, fragile documents and books.

Specifications

Image Sensor CCD
Optical Resolution 800 dpi
Scan Modes Colour: 48-bit input, 24-bit output
Grayscale: 16-bit input, 8-bit output
B/W: 1-bit output
Colour Depth Input 48-bit; Output 24-bit
Scanning Speed 7.8 sec (Color/ Grayscale/ B&W mode, 300dpi, A3)
Scanning Area (W x L) Max. 304.8 mm × 431.8 mm (12" × 17"), A3
Daily Duty Scan (Sheets) 2,500
Action Button 1,2,3,4,5,6,7
Power Supply 24 Vdc/ 1.25 A
Power Consumption ≦ 30 W (operation), ≦ 2.9 W (idle), ≦ 0.3 W (standby)
Interface USB 2.0
Net Weight 7.5 Kgs (16.52 Lbs)
Dimensions (W x D x H) 623 x 400 x 140 mm (24.53” x 15.75” x 5.51”)
Protocol TWAIN Compliant, WIA
OS Windows 7 / 8 / 10 / 11
macOS 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/11.1x /11.2x /12.x

Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info.
Hardware Requirements Windows and Mac
2.0 GHz CPU processor or higher[1][2][3]
[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher
[2]Support Mac INTEL and M1 based processor
[3]Compatibility is not available with PowerPC
4 GB RAM minimum (Recommended: 8 GB or more, A3 size@1600 dpi scanning, allocated 20 GB Virtual Memory at minimum)
6 GB of hard-disk space for program installation
Display dimensions of 1024x768 or greater
Bundled Software Plustek DocAction
Plustek DocTWAIN
Plustek MacAction
Plustek ICA

Built-in OCR Plustek OCR (For Windows and Mac)
(Powered by ABBYY® FineReader®)

What's in the box
    Scanner

    Power Cable
    AC Adapter
    USB Cable
    Setup/Application CD-ROM

OpticPro A320E Leaflet
